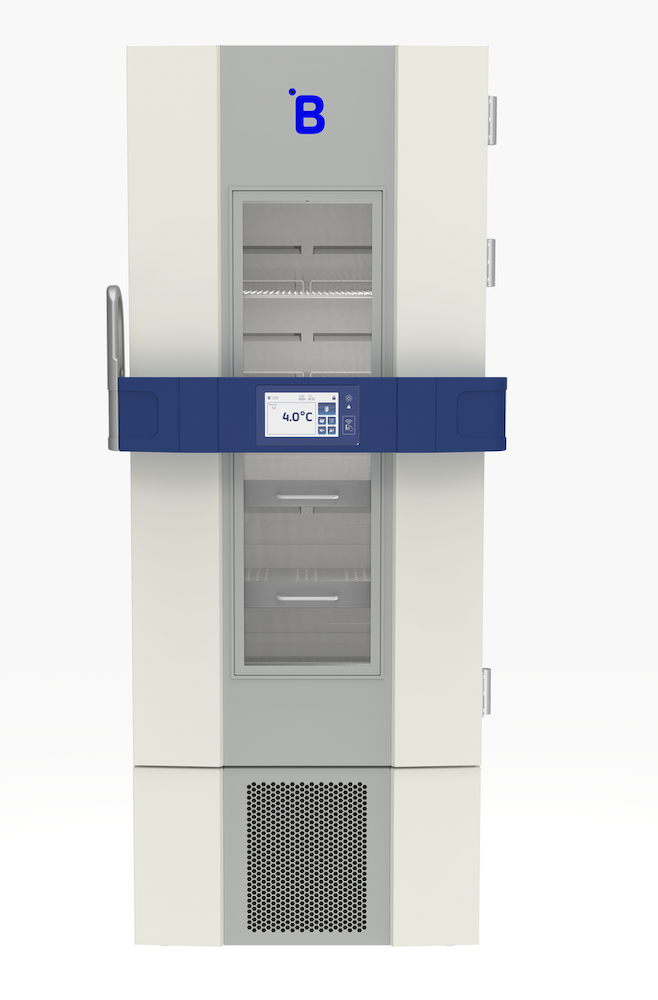

Blood Bank Refrigerators Series B
| Manufacturer: | B Medical Systems |
|---|---|
| Country: | Luxemburg |
Specialist consultation
+38 (067) 880 44 83Details
B Medical Systems Blood Bank Refrigerators are specifically designed for the safe storage of blood and blood components at temperatures ranging from +2 °C to +6 °C. The equipment meets the highest standards of modern transfusion medicine and is widely used in blood banks, blood transfusion services, laboratories, hospitals, and healthcare facilities.
All models maintain a stable storage temperature of +4 °C, which is critical for preserving the quality and safety of blood products. Thanks to the forced-air cooling system, temperature is evenly distributed throughout the chamber, while rapid temperature recovery after door openings minimizes the risk of storage condition deviations.
The B Medical Systems Blood Bank Refrigerator Series complies with DIN 13277, ÖNORM K 2030, and AABB standards and is certified as a Class IIa Medical Device under the EU MDR.
Each model features a digital temperature control system, visual and audible alarm functions, freeze protection, and optional remote monitoring through the °B Connected platform.
KEY ADVANTAGES
Stable Temperature Control
The forced-air cooling system ensures uniform temperature distribution throughout the cabinet and maintains precise conditions even during frequent door openings.
Maximum Storage Safety
An integrated safety system includes freeze protection and audible/visual alarms that notify users of any temperature deviations.
Remote Monitoring
Using the °B Connected software, users can monitor temperature, receive alerts, and generate reports remotely via SMS or email.
Power Failure Protection
The refrigerators maintain safe storage conditions for a defined period in the event of a power outage.
Energy Efficiency
All models use environmentally friendly natural refrigerants (R600a or R290), ensuring low energy consumption and reduced environmental impact.
Compliance with International Standards
The equipment complies with AABB, DIN 13277, ISO 14644-1, and EU MDR Class IIa requirements.

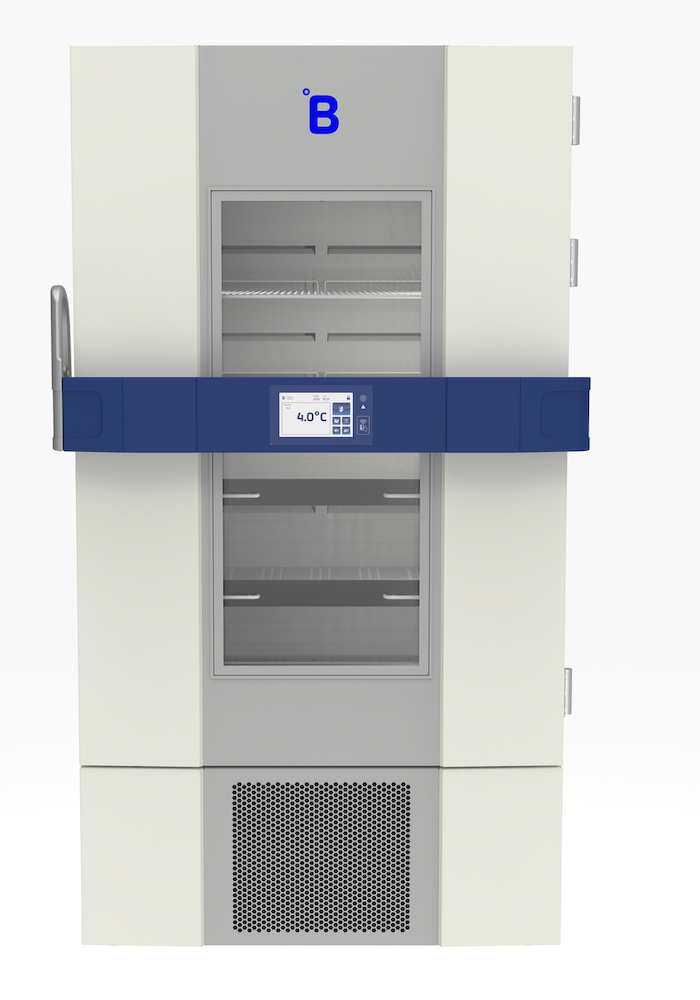

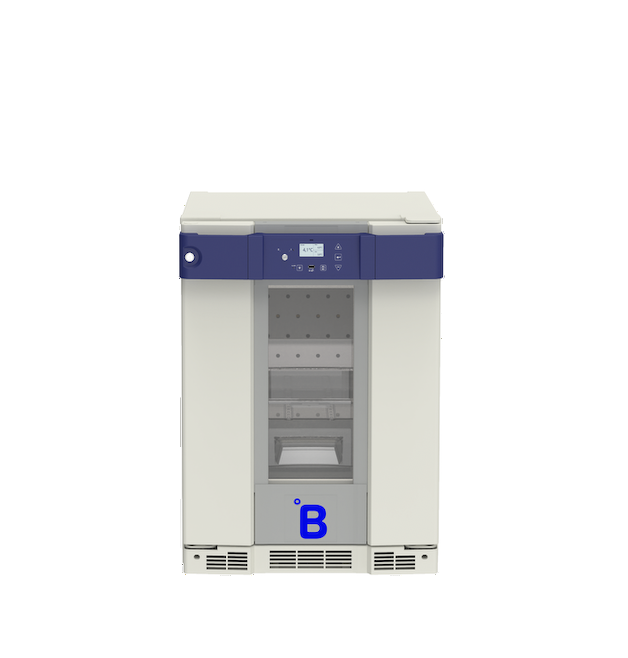

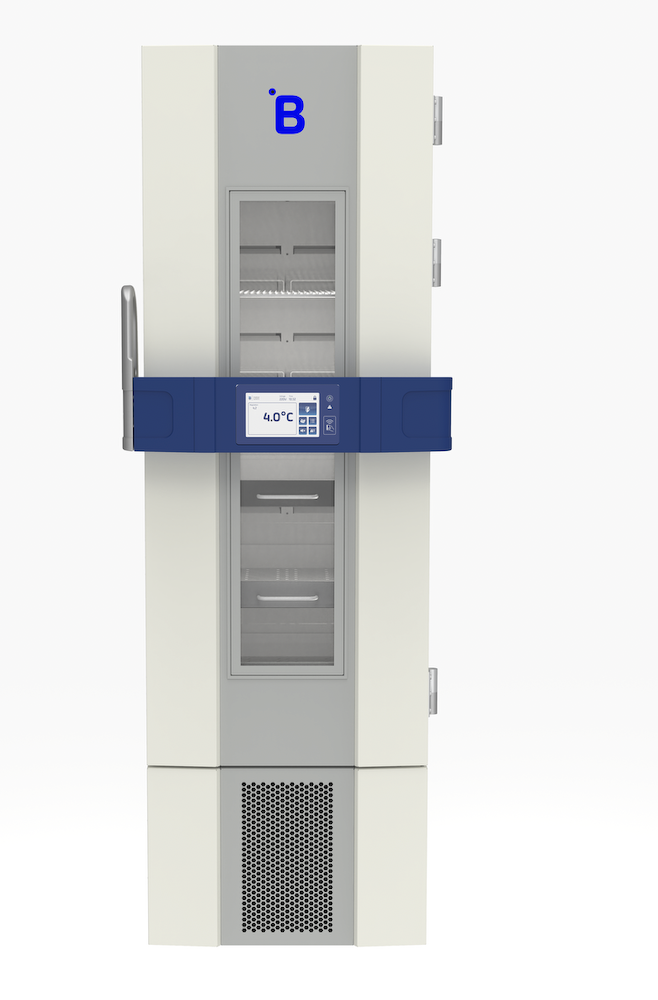

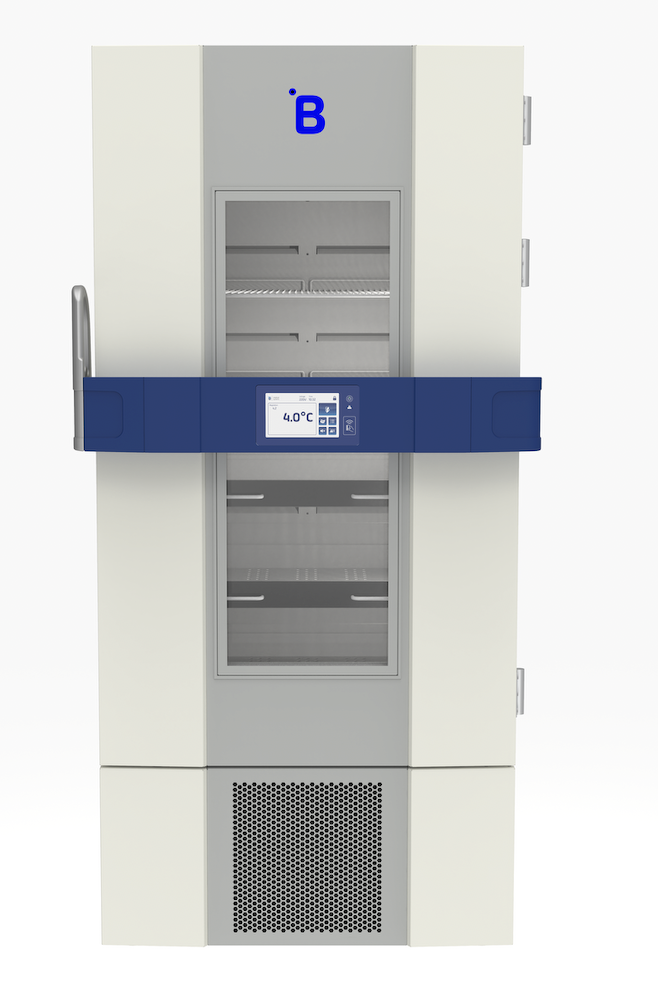

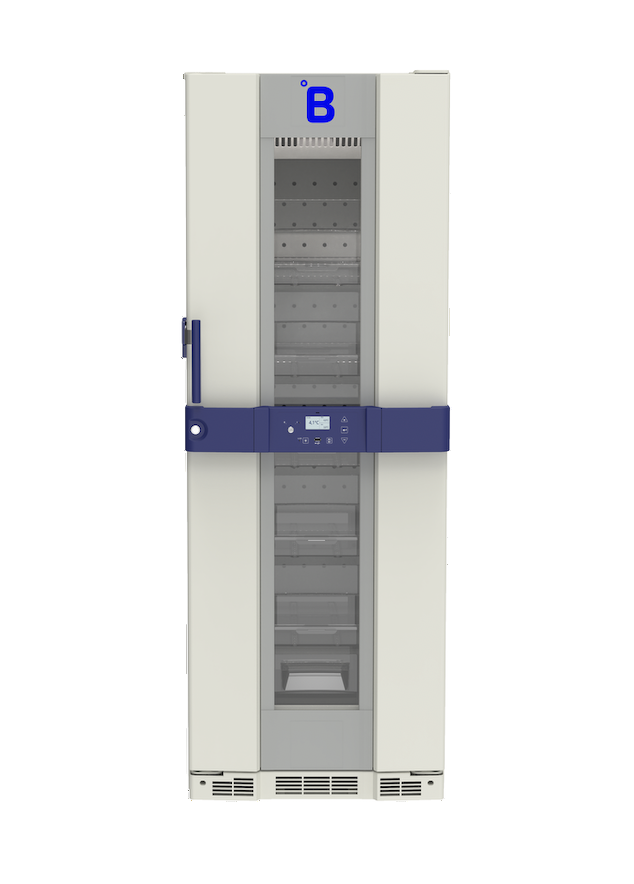

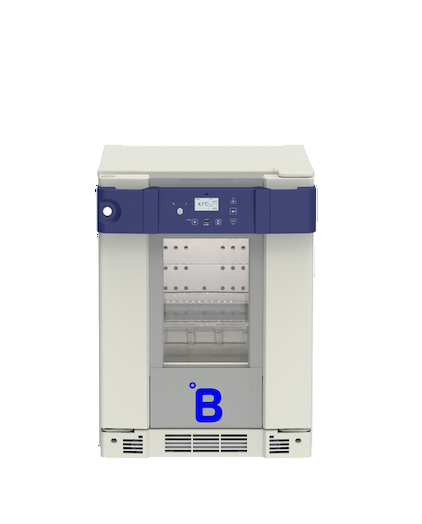

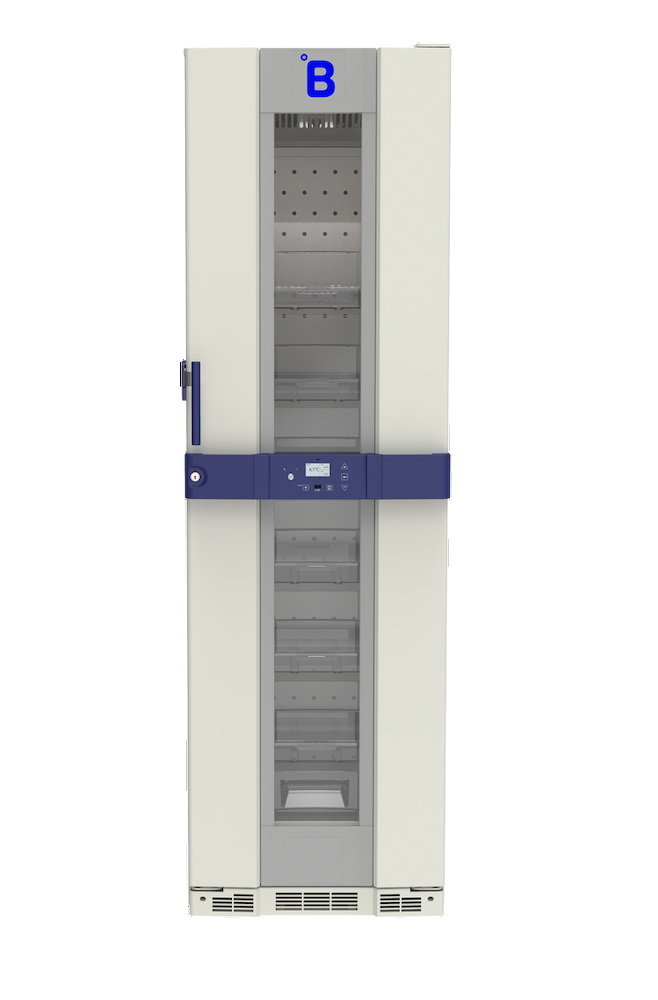

MODELS AND CAPACITIES
| Model |
Capacity |
Dimensions (H × W × D) |
|---|---|---|
|
B51 |
45 l |
670 × 495 × 575 mm |
|
B131 |
106 L |
830 × 595 × 695 mm |
|
B291 |
269 L |
1670 × 595 × 695 mm |
|
B381 |
329 L |
1980 × 595 × 695 mm |
|
B401 |
390 L |
1988 × 699 × 1039 mm |
|
B501 |
517 L |
1988 × 845 × 1039 mm |
|
B701 |
645 L |
1988 × 992 × 1039 mm |
|
B901 |
773 L |
1988 × 1139 × 1039 mm |
|

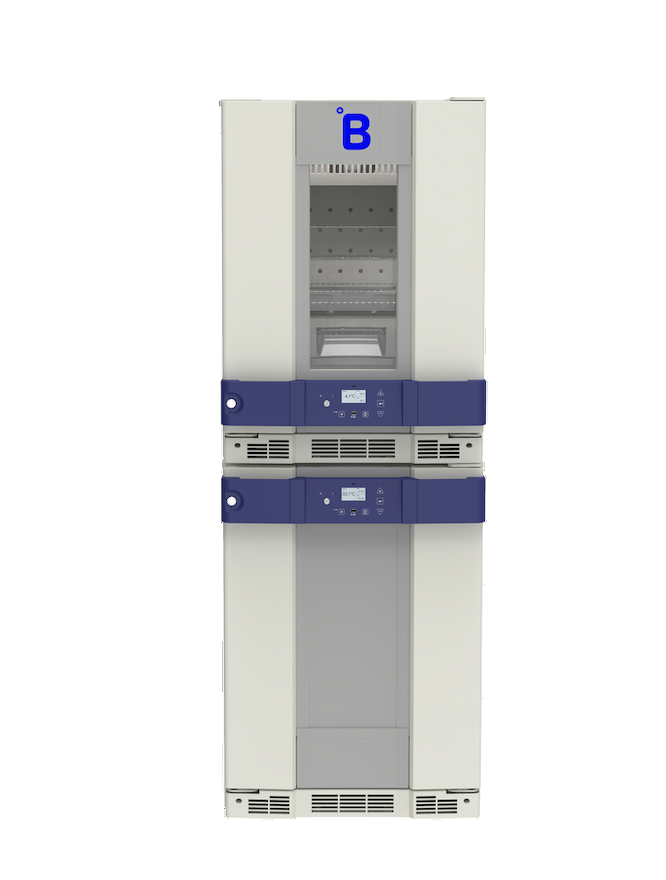

BF261 |
106 L Blood Bank Refrigerator + 106 L Plasma Freezer |
1650 × 595 × 695 mm |
Characteristics
| Application | Storage of blood and blood components |
|---|---|
| Alarm Temperature Range | +2 °C to +6 °C* |
| Temperature Control | Microprocessor controller with digital display |
| Monitoring | Optional °B Connected |
| Data Export | USB Port |
| Defrosting | Automatic natural defrost |
| Certifications | AABB, DIN 13277, ÖNORM K 2030, ISO 14644-1 |
| Power Supply | 220–240 V, 50/60 Hz |
| Operating Temperature | +4 °C |
|---|---|
| Cooling System | Forced-air circulation |
| Refrigerant | Natural R600a (selected models R290/R600a) |
| Alarm Transmission | SMS and Email |
| Access Control | Lock with two keys |
| Medical Device Classification | EU MDR Class IIa |
| Capacity Range | 45 L to 773 L |
Service and Warranty
We provide premium service and maintenance for every device and consumable:
• Comprehensive maintenance of medical equipment
• Installations, commissioning
• Warranty and post-warranty service
• Instruction, training and consultations for your team
More details on the SERVICE page
