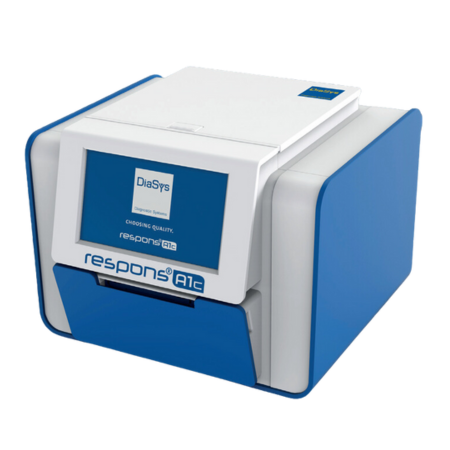

respons®A1c glycated hemoglobin analyzer by DiaSys

Manufacturer:DiaSys Diagnostic Systems
Country:Germany

Specialist consultation

+38 (098) 169 51 80

Details

respons®A1c is a compact and easy-to-use analyzer for fast and reliable determination of HbA1c levels in capillary blood. The device uses boronate affinity chromatography technology, ensuring accurate results without complex sample preparation.



Testing follows a true “one step” principle: only a single finger prick and a minimal blood volume (3.5 µL) are required to obtain results in just 4.5 minutes.



The system uses a single-use pre-calibrated unit-dose cartridge containing a reagent pack with an integrated capillary and cassette, which minimizes errors and simplifies the testing process.



The analyzer is equipped with a 4.3” color touchscreen, voice guidance during testing, a built-in printer, and memory for 400 results, making it highly suitable for daily clinical use.



The device is designed for laboratories and medical facilities where speed, accuracy, and simplicity of HbA1c diagnostics are essential.



Features:



  • HbA1c test in 4.5 minutes
  • Minimal blood sample: 3.5 µL
  • Boronate affinity chromatography method
  • Pre-calibrated single-use cartridges
  • Simple “one step” workflow
  • 4.3” color touchscreen
  • Voice guidance
  • Built-in thermal printer
  • Memory for 400 results
  • USB and Ethernet connectivity
  • Compact design



Characteristics

Test methodboronate affinity chromatography
HbA1c range4.0–15.0% DCCT (9–140 mmol/mol IFCC)
Test time4 min 30 sec
Sample volume3.5 µL
Storage (cartridges)2–30°C
Storage (device)10–60°C; 15–75% RH
Memory400 results
ConnectivityUSB-A, USB-B, Ethernet
Dimensions205 × 200 × 150 mm
Cartridgepre-calibrated single-use system
Hematocrit range22.5–60%
Precision2.6% (5.4% DCCT); 1.9% (9.0% DCCT)
Shelf life18 months
Operating conditions17–37°C; 15–75% RH
Interface4.3” color touchscreen, voice guidance
Printerbuilt-in thermal printer
Weight1.6 kg
Power supply100/240VAC, 12VDC, 3.33A

Service and Warranty

We provide premium service and maintenance for every device and consumable:



Comprehensive maintenance of medical equipment

Installations, commissioning

Warranty and post-warranty service

Instruction, training and consultations for your team



More details on the SERVICE page

Contact phone+38 (067) 133 05 52
E-mail:service@empirica.healthcare

Monitoring carbohydrate metabolism plays an important role in the diagnosis and monitoring of patients diagnosed with or at risk for diabetes. Glycated hemoglobin (Glycated Hemoglobin) is one of the most informative laboratory parameters, allowing one to assess average glucose levels over a long period of time. This is why HbA1c analyzers are widely used in medical practice, where speed of data acquisition and high measurement accuracy are essential.



What is a Glycated Hemoglobin Analyzer?



A Glycated Hemoglobin Analyzer is a specialized device designed to quickly determine the HbA1c level in blood samples. This HbA1c analyzer helps determine how effectively a patient's blood sugar levels have been controlled over the past several months. Unlike a single glucose measurement, Glycated Hemoglobin (Glycated Hemoglobin) reflects average blood sugar levels over a long period of time. This provides physicians with more objective information about the progression of the disease and the effectiveness of prescribed treatment.



Each test is based on determining the proportion of hemoglobin bound to glucose molecules. The higher the average blood sugar level, the higher the HbA1c value. This method has long been recognized as an important tool for diagnosing and monitoring patients diagnosed with diabetes. A modern glycated hemoglobin analyzer allows for rapid testing without complex sample preparation, which is especially important in clinical practice.



When and why is a glycated hemoglobin analyzer needed?



The primary purpose of this equipment is to accurately determine the HbA1c (a1c) level, which is used for diagnosing and monitoring patients. If diabetes is suspected, this indicator helps confirm the diagnosis and assess the risk of complications. Glycated hemoglobin is also used to monitor the effectiveness of therapy. If prescribed treatment helps maintain blood sugar levels within target limits, the indicator gradually stabilizes. Otherwise, the physician receives a signal indicating the need to adjust therapy.



For many patients diagnosed with diabetes, regular HbA1c testing becomes an important part of their medical care. This monitoring allows them to assess the progress of the disease and promptly respond to changes in their condition. This indicator is especially important in cases where routine glucose measurements may provide an incomplete picture. Therefore, glycated hemoglobin is considered a more informative parameter for long-term assessment of a patient's condition.



Features of the DiaSys respons®A1c Glycated Hemoglobin Analyzer



The DiaSys respons®A1c glycated hemoglobin analyzer is available at the Empirika online store. This compact and convenient device is designed for quickly determining HbA1c (A1c) in capillary blood. The respons A1c system uses boronate affinity chromatography technology, which ensures high test accuracy. The test requires only a single finger prick and a minimal amount of blood, and results are available in just 4.5 minutes. The hemoglobin contained in the sample is analyzed, determining its binding to glucose molecules, allowing for an assessment of average blood sugar levels over a long period of time. This method is particularly useful for monitoring patients diagnosed with diabetes. The system of disposable, pre-calibrated cartridges deserves special attention. Each cartridge contains a built-in capillary and reagent block, reducing the likelihood of error and ensuring consistent test results. The DiaSys respons A1c model features a 4.3-inch color touchscreen, a built-in printer, and memory for 400 results. Voice prompts help simplify staff workflow and make testing more convenient. Its compact size allows for use in both large medical facilities and small laboratories where rapid HbA1c testing without complex sample preparation is essential.



If you need reliable HbA1c (A1c) testing equipment, the Empirika online store offers high-quality options for medical facilities and laboratories. Our catalog features modern DiaSys analyzers, a detailed catalog, current prices, technical specifications, and professional consultations. We deliver throughout Kyiv and Ukraine, allowing you to quickly equip your laboratory with HbA1c monitoring equipment.
