Vaccine Transport Containers RCW
| Manufacturer: | B Medical Systems |
|---|---|
| Country: | Luxemburg |
Specialist consultation
+38 (067) 880 44 83Details

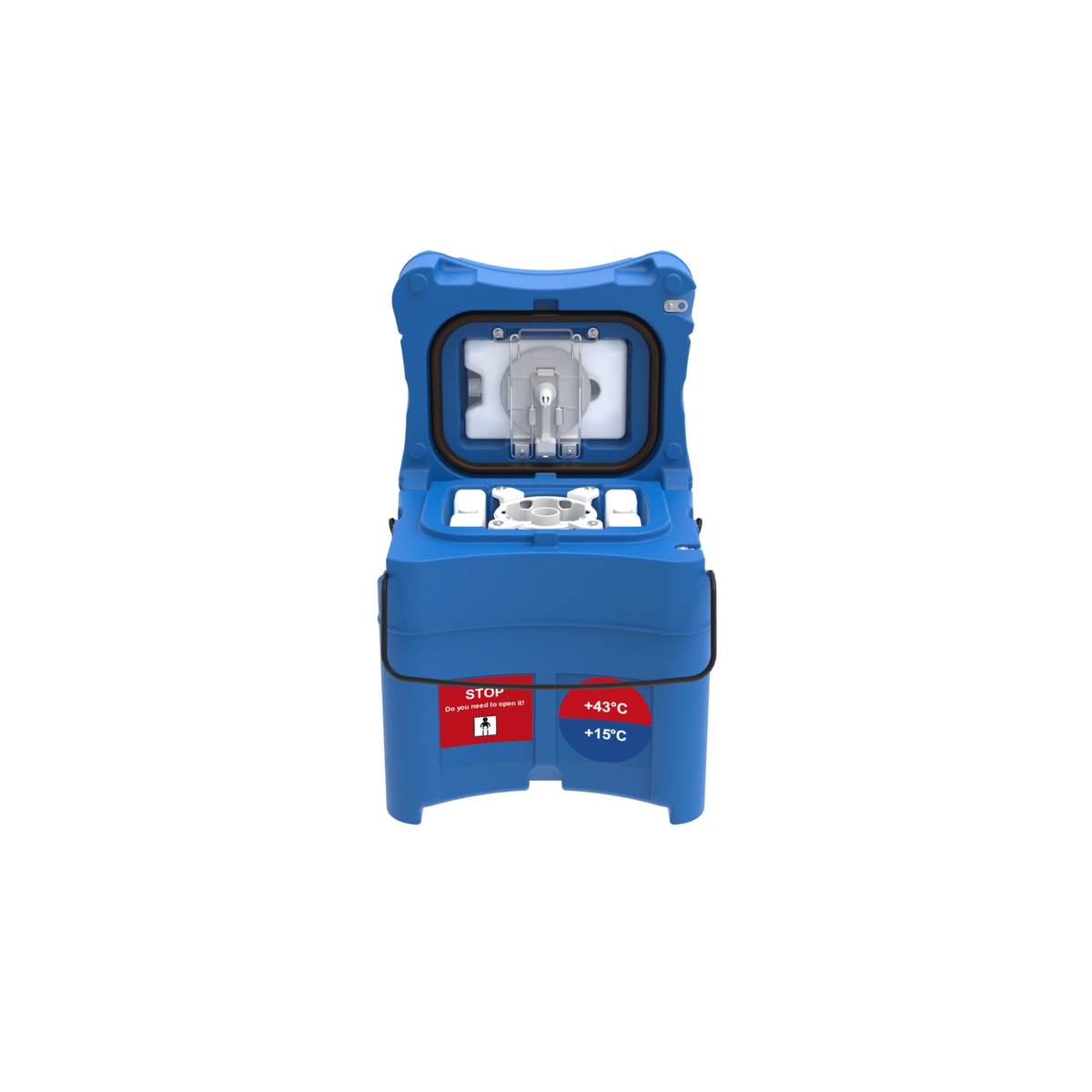

Vaccine Transport Containers RCW
The RCW series is designed by B Medical Systems for the safe transportation of vaccines and biological preparations under any conditions. These containers form a critical link in the cold-chain system — from manufacturing to the most remote vaccination point, where temperature control determines the effectiveness of the vaccine.
Heat-insulated using passive cooling technology, RCW containers maintain a stable internal temperature between +2 °C and +8 °C for several days — even without external power supply. This enables delivery of vaccines to remote regions while preserving their biological activity.
The enclosure is made with high-density polyethylene (HDPE), rugged and resistant to impact, vibrations and extreme weather. The material is non-absorbent, corrosion-free and easy to disinfect — making RCW an indispensable tool in field operations, vaccination campaigns and humanitarian missions.
A well-designed structure ensures ergothermal efficiency: multi-layer thermal insulation reduces cold-loss, while a hermetic lid seal prevents thermal exchange. Each model may be equipped with a temperature indicator or can integrate a data-logger for full traceability during transport.
RCW containers are certified by the World Health Organization (WHO PQS) and meet international requirements for vaccine storage, confirming their reliability and durability in real-life deployment.
Available in a range of volumes — from compact units for short-haul transport to large containers capable of maintaining cold over 10 days. Whatever the scale of your mission, RCW offers one guarantee: protection of the vaccine from temperature excursions and assurance of effective immunization for every person.
Characteristics
| RCW 1 | Vaccine storage capacity โ 1.04 L Temperature range โ +2 ยฐC to +8 ยฐC Cold life โ up to 32 h External dimensions โ 430 ร 347 ร 281 mm Weight โ 4.8 kg Cooling type โ passive, with cold packs Certification โ WHO PQS E004/059 |
|---|---|
| RCW 8 | Vaccine capacity โ 6 L Cold life โ up to 58 h Dimensions โ 437 ร 588 ร 288 mm Weight โ 6.8 kg Temperature indicator and data-logger integration option Certification โ WHO PQS E004/003 |
| RCW 25 | Vaccine capacity โ 20 L Cold life โ up to 134 h Dimensions โ 499 ร 710 ร 550 mm Weight โ 15.9 kg Application โ long-distance transport of large volumes Certification โ WHO PQS E004/005 |
| RCW 4 | Vaccine capacity โ 3 L Cold life โ approx. 30 h Dimensions โ 299 ร 362 ร 283 mm Weight โ 3.1 kg Housing โ impact-resistant HDPE Certification โ WHO PQS E004/002 |
|---|---|
| RCW 12 | Vaccine capacity โ 7 L Cold life โ up to 115 h Dimensions โ 499 ร 550 ร 475 mm Weight โ 11.7 kg Material โ HDPE with CFC-free polyurethane insulation Certification โ WHO PQS E004/004 |
